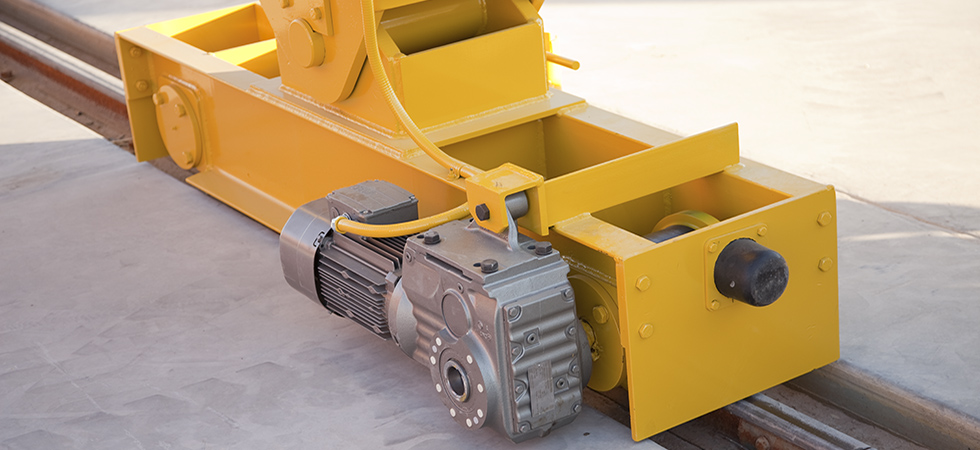

End Trucks
ProservCrane Group manufactures pre-engineered End Trucks for all applications up to CMAA Class “E”. Our in-house Engineering staff and fully-stocked Parts Department allows us to customize your End Truck to your precise specifications with fast on-time delivery everytime.
Standard Features
- Up to CMAA Class "E"
- Up to 24” wheels
- Fixed and rotating axles
- Single and double girder
- Top running and under hung
- Full Engineering staff to handle Customer Support
- Full Parts Department with in-stock components
- One of the fastest deliveries in the industry
- Non-proprietary motors, gearboxes and controls
- 2 year parts and labor warranty
Design Features
- For precise wheel alignment all machining is performed
after welding is complete - Rail sweeps and rubber bumpers
- Double flange 400 BHN (Top running)
- Single flange 280 BHN (Under hung)
- Double row spherical bearings
- 5,000 hrs. L-10 (Class “C”)
- Tube type construction
Optional
- 10,000 hrs. L-10 (Class “D”)
- 20,000 hrs. L-10 (Class “E”)
- Hydraulic or spring bumpers
- Equalizing bogie truck design
Drives
- Dual Drive
- Helical gear motors
- Totally enclosed non-ventilated (TENV)
- 60 minute Class “F” insulation
- Inverter duty motor
- Disc brakes are set at 50% torque
- Hollow shaft gearbox
- Easily accessible motor for quick repair
- Exceeds AGMA Class “12”
Optional
- Foot mount motor
- All-wheel drive
Enclosure
- NEMA 4/12
- Variable speed controls
- Through the door disconnect
- Mainline contactor
- All wiring is labeled
- Dynamic braking resistor
Optional
- Vector
- Line reactors
- Advanced programming compatibility
- Express speed
- Anti-sway
- Air conditioning
- Radio control
