Gorbel Jib Cranes
Gorbel Product Line
- Free Standing
- Wall Cantilever
- Wall Bracket
- Mast Sype
- Free Standing Articulating Jib
- Ceiling Mounted Articulating Jib
- Wall Mounted Articulating Jib

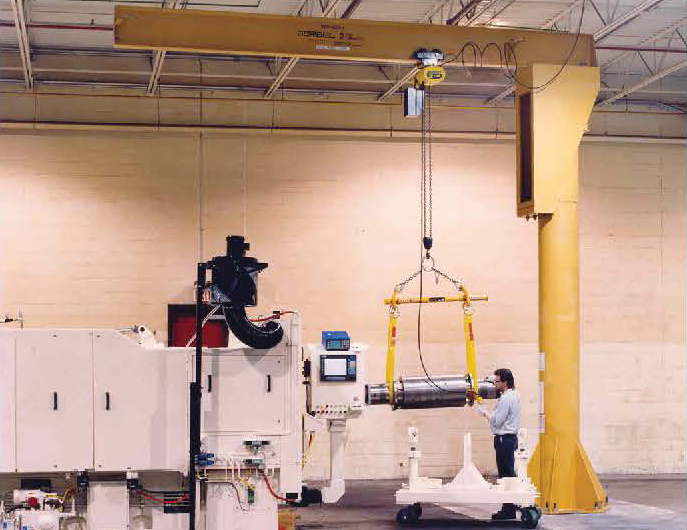

Free Standing Jib Crane
- Capacity up to 10,000 lbs.
- Coverage: circular, Standard spans to 20 ft.
- 360° rotation
- 3 Mounting styles; base plate mounted, sleeve mounted, insert sleev mounted
- Independent head assembly installs separately for ease of installation
- Full supporting triangular base plate gussets are used instead of struts to minimize crane deflection and make positioning loads easier

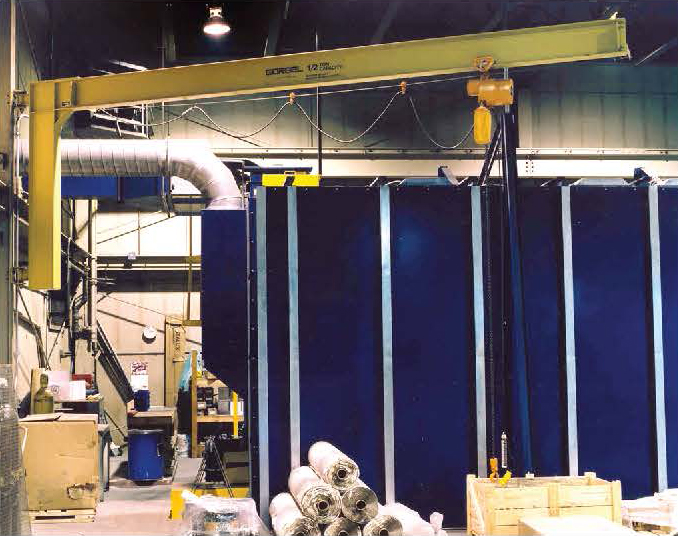

Wall Cantilever Jib Crane
- Capacity up to 10,000 lbs.
- Coverage: circular, Standard spans to 20 ft.
- 200° rotation
- Welded or bolted connection depending on bracket centers
- Requires very little headroom, so it can be installed very close to the underside of ceilings to provide maximum lift for your hoist

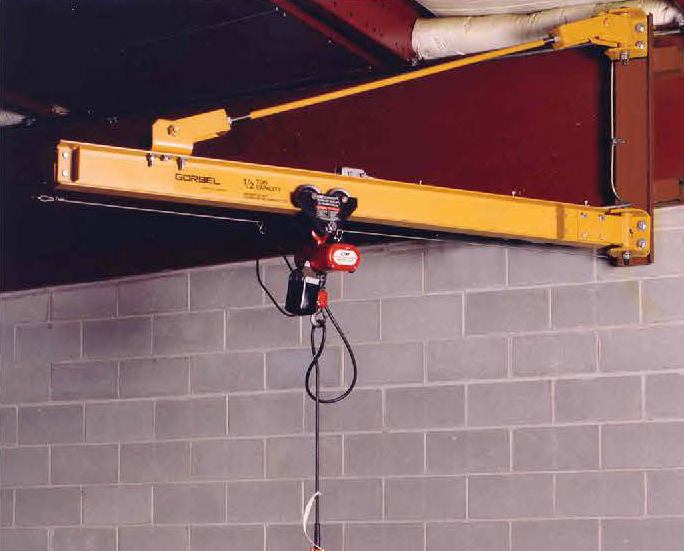

Wall Bracket Jib Crane
- Capacity up to 10,000 lbs.
- Coverage: circular, Standard spans to 30 ft.
- 200° rotation
- Ideal for swinging around obstacles or under obstructions
- Most economical means of providing hoist coverage for individual use in bays, along walls or columns of plants
- Single tie rod, right hand threaded at both ends for easy boom adjustment and installation

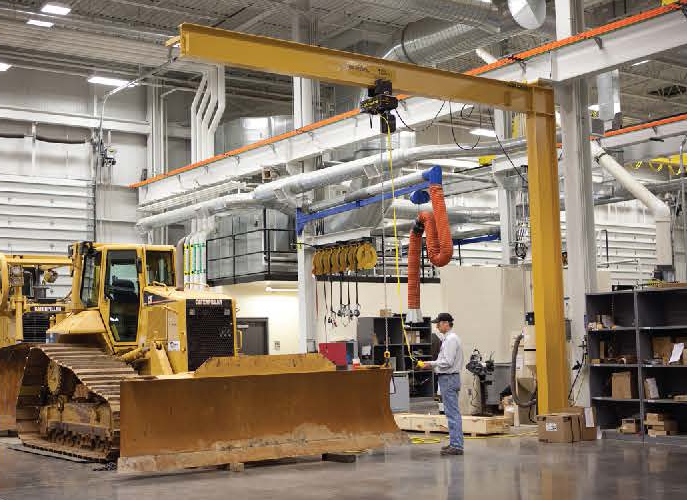

Mast Type Jib Crane
- Capacity up to 10,000 lbs.
- Coverage: circular, Standard spans to 20 ft.
- MT400 Full Cantilever - Provides maximum amount of lift where full use of available headroom is desired
- MT450 Drop Cantilever - Jib boom can be placed at a specific height to clear overhead obstructions
- 200° rotation
- No special foundation required making it the most economical of our 360 degree rotation jibs
- Full Cantilever option provides maximum amount of lift where full use of available headroom is desired
- Drop Cantilever option allows for specific placement of the boom to clear overhead obstructions

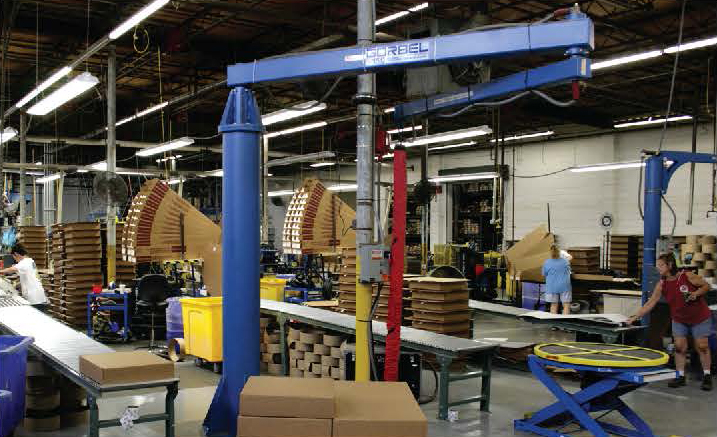

Free Standing Articulating Jib
- Capacity up to 2000 lbs.
- Coverage: circular, Standard spans to 16 ft.
- 360° rotation at each pivot point
- Can be used with hook mounted lifting devices (electric, air, or vacuum)
- Installation: floor mounted, easy to install
- Effortless rotation
- Special foundations may be required -contact factory for assistance

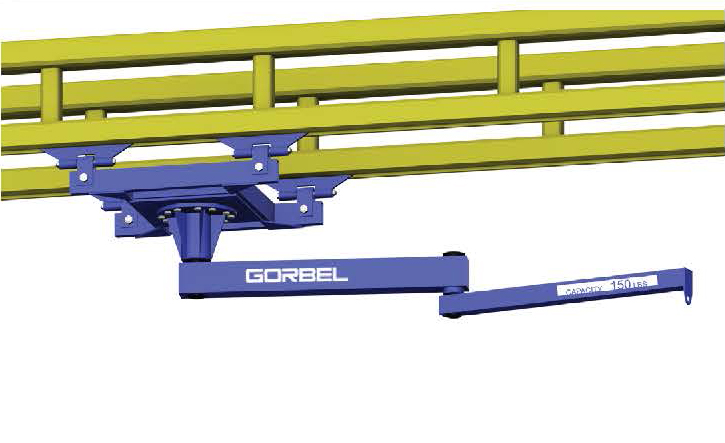

Ceiling Mounted Articulating Jib
- Capacity up to 2000 lbs.
- Coverage: circular, Standard spans to 16 ft.
- 360° rotation at each pivot point
- Can be used with hook mounted lifting devices (electric, air, or vacuum)
- Can be mounted to a platform supported from a bridge crane to swing outside the normal coverage of a bridge crane
